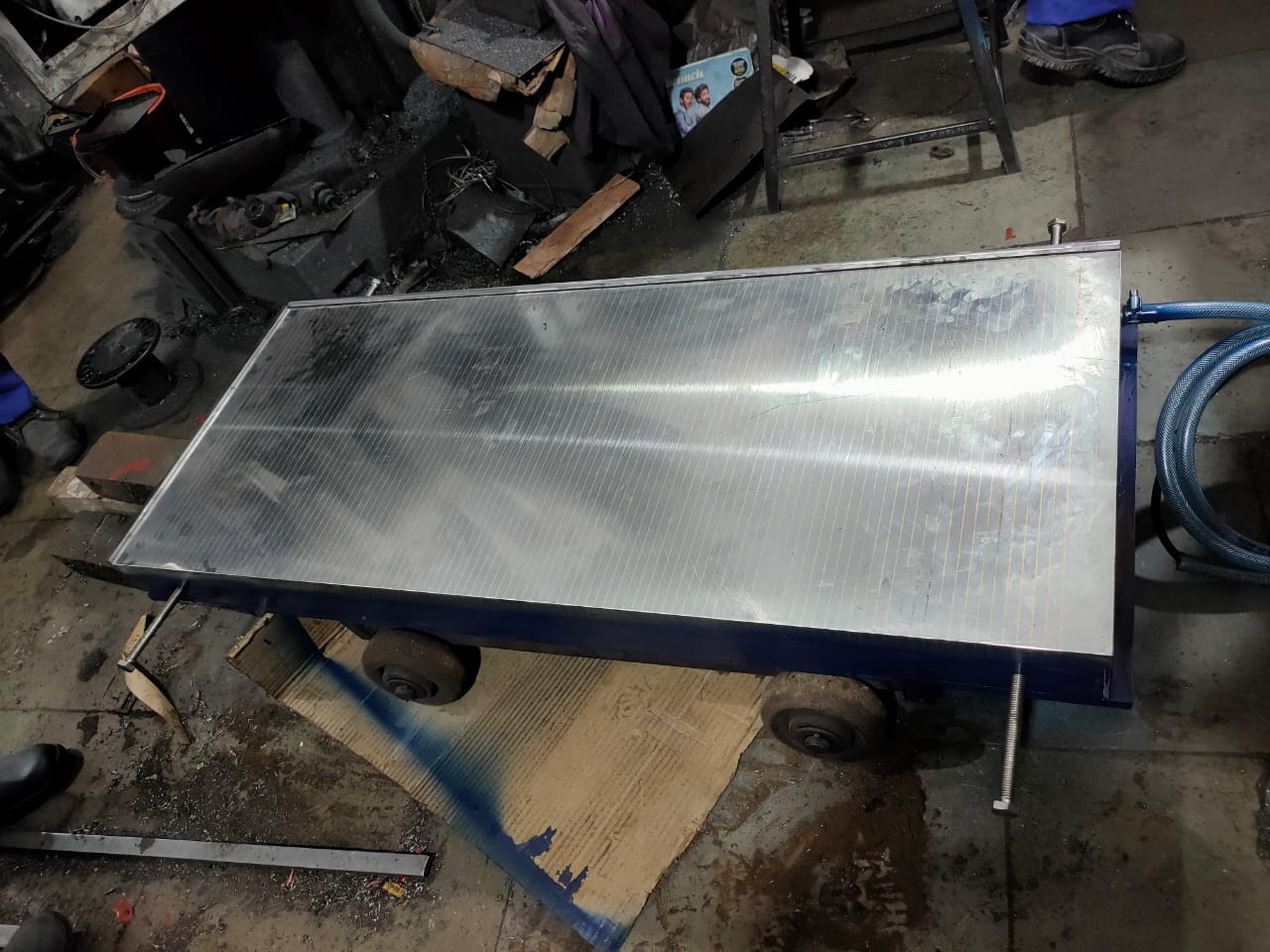

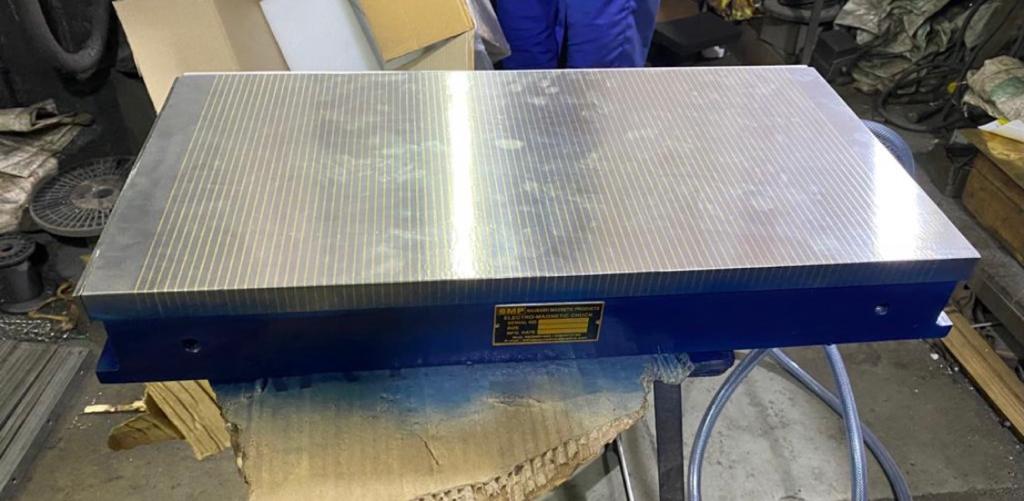

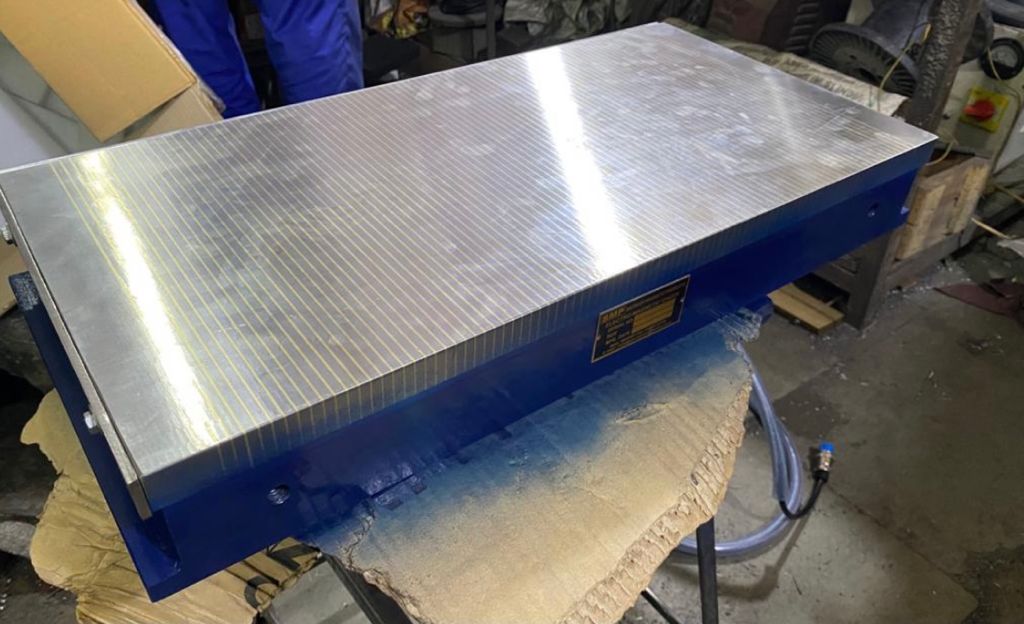

Electro Magnetic Chuck
HEAVY DUTY ELECTROMAGNETIC RECTANGULAR CHUCK
Work holding device for surface grinding machines.
Each pole is having separate coil, as such very strong & even magnetic flux is generated.
Accuracy as per IS : 8710 - 1978.
Magnetic pull is 30-50% more then IS specification.
Mag - D - Mag with variable control unit allows to neutralize the residual magnetism precisely, using a microprocessor based control circuitry.
Variable supply to vary power which helps in alignment & removing of warpages of thin jobs.
Also available in Longitudinal Poles.
We also manufacture Special chucks to suit individual requirements.
Good quality & standard electrical accessories.
Sr.No. |
Cat No. |
Size |
Pole Gap (mm) |
Pole Pitch (mm) |
1 |
SMP-5001
|
200 L x 100 W x 60 H |
10+1 |
22 |
2 |
SMP-5002
|
200 L x 150 W x 60 H |
10+1 |
22 |
3 |
SMP-5003
|
250 L x 150 W x 60 H |
10+1 |
22 |
4 |
SMP-5004
|
300 L x 150 W x 60 H |
10+1 |
22 |
5 |
SMP-5005
|
300 L x 200 W x 65 H |
10+1 |
22 |
6 |
SMP-5006
|
350 L x 150 W x 65 H |
10+1 |
22 |
7 |
SMP-5007
|
400 L x 150 W x 65 H |
10+1 |
22 |
8 |
SMP-5008
|
450 L x 150 W x 65 H |
10+1 |
22 |
9 |
SMP-5009
|
450 L x 200 W x 70 H |
10+1 |
22 |
10 |
SMP-5010
|
500 L x 200 W x 70 H |
10+1 |
22 |
11 |
SMP-5011
|
600 L x 200 W x 70 H |
10+1 |
22 |
12 |
SMP-5012
|
450 L x 250 W x 70 H |
10+1 |
22 |
13 |
SMP-5013
|
450 L x 300 W x 70 H |
10+1 |
22 |
14 |
SMP-5013
|
600 L x 250 W x 70 H |
10+1 |
22 |
15 |
SMP-5015
|
600 L x 300 W x 70 H |
10+1 |
22 |
16 |
SMP-5016
|
750 L x 250 W x 70 H |
10+1 |
22 |
