Precast Shuttering Magnet

Precast Shuttering Magnet

Precast magnets, also known as formwork magnets, As the prefabricated construction industry rapidly advances, magnetic fastening products such as shuttering magnets have become essential in the production of precast concrete components. The magnetic block is embedded directly within the formwork, providing a more convenient, efficient, and stable solution compared to traditional magnetic boxes.

Using the magnetic block's holding power, the formwork is securely attached to the template, ensuring that the formwork system stays fixed in place. The integration of the steel formwork and magnetic blocks prevents any positional movement, ensuring the formwork system remains undistorted. Additionally, the simple and quick operation of the magnets makes the process safer and more stable overall. With the help of a pry bar, the formwork magnet can be lifted, allowing the steel formwork to be removed easily from the template. Since the magnets are situated inside the groove of the steel formwork, concrete debris or other contaminants won’t damage the formwork system.

Advantages of Precast Concrete Magnets

Easy to use.

Suitable for both wood and steel formworks.

Suitable for both wood and steel formworks.

Adhesive force varies from 450 kg to 2100 kg.

No need for welding or bolting to the formwork table, ensuring the surface finish remains intact.

The same magnet can be applied for multiple purposes.

Features integrated threaded holes for formwork adaptation.

Adapters can be custom-made as needed.

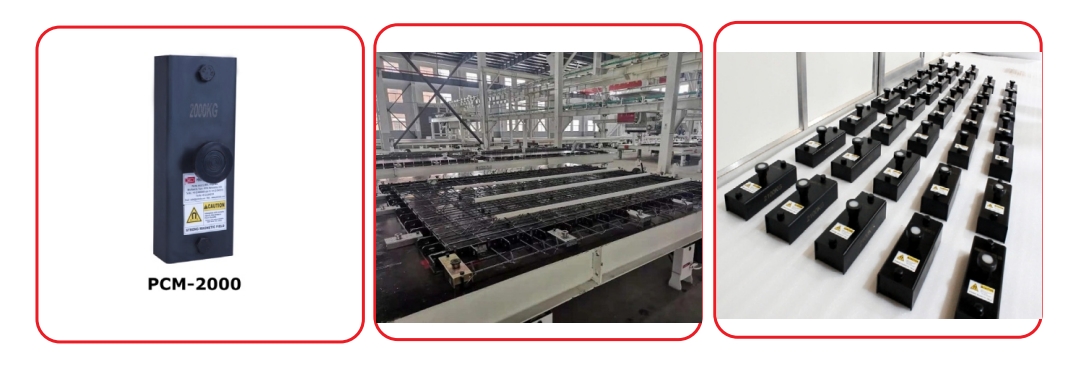

SMP Precast Concrete Magnets
MODEL-NO	Force	L	W	H	L1	H1
Unit	Kg	mm	mm	mm	mm	mm
PCM-501	600	186	70	60	136	96.5
PCM-601	900	310	86	60	260	96.5
PCM-701	1600	310	120	60	260	96.5

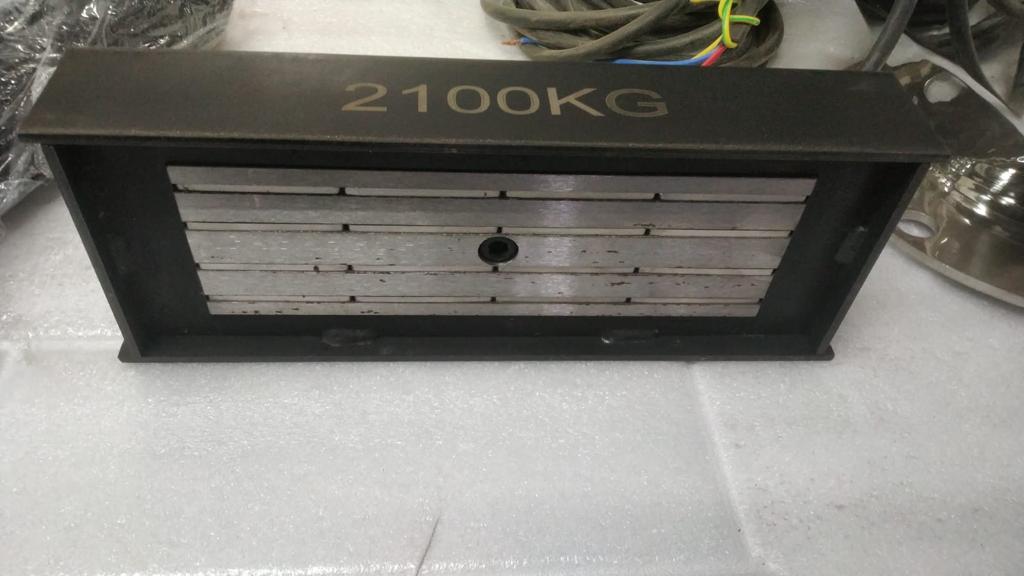

PCM-801	2100	310	120	60	260	96.5

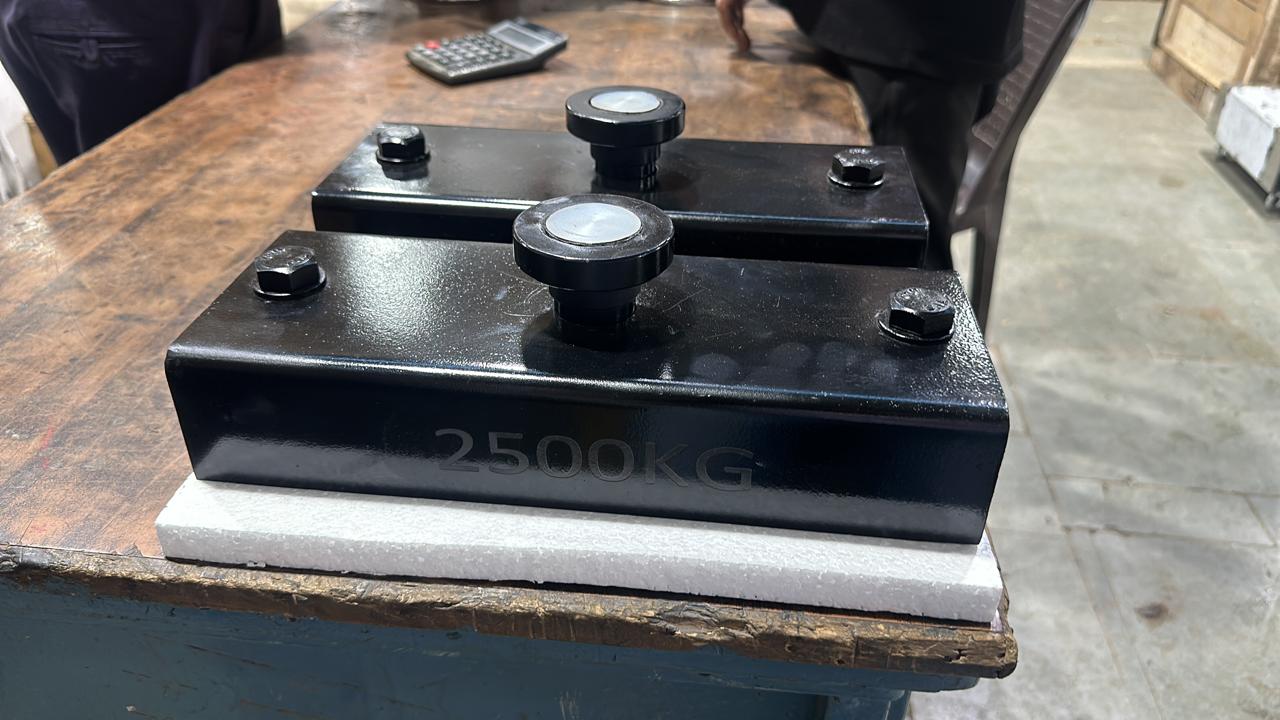

PCM-901	2500	310	120	60	260	96.5
