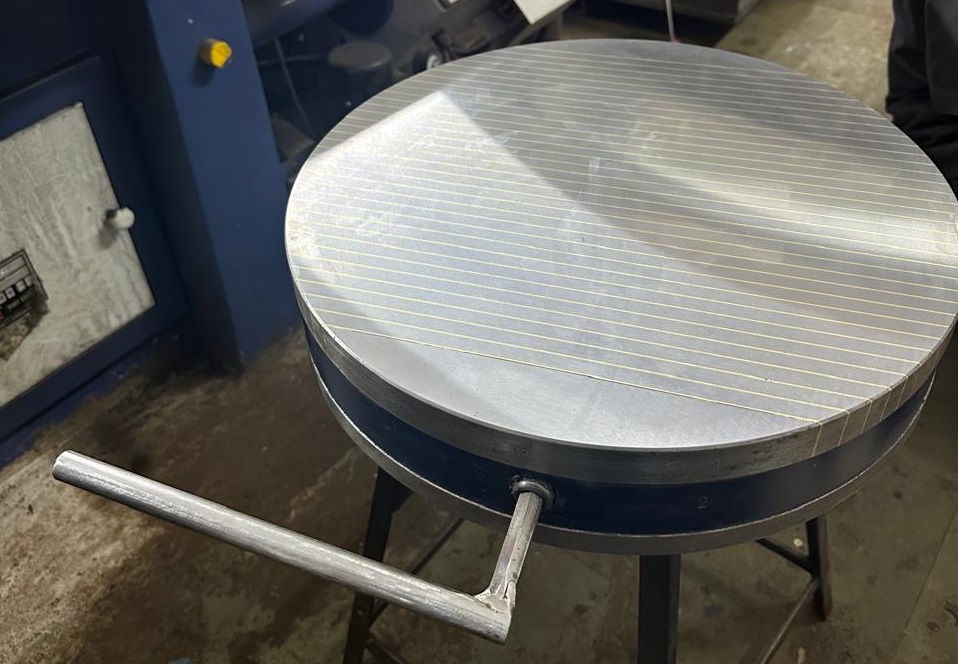

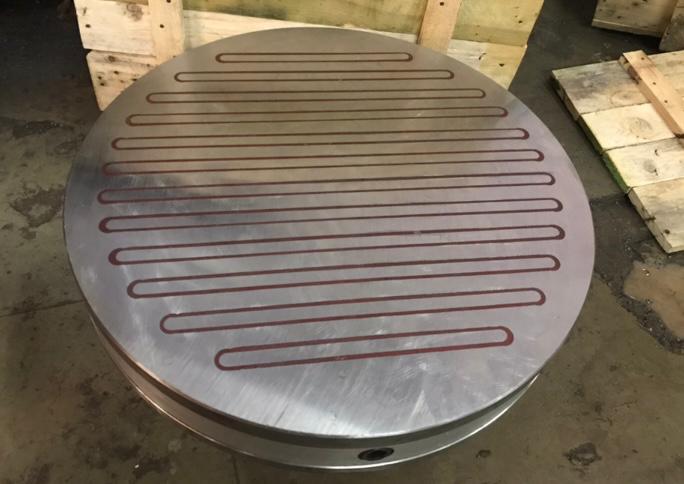

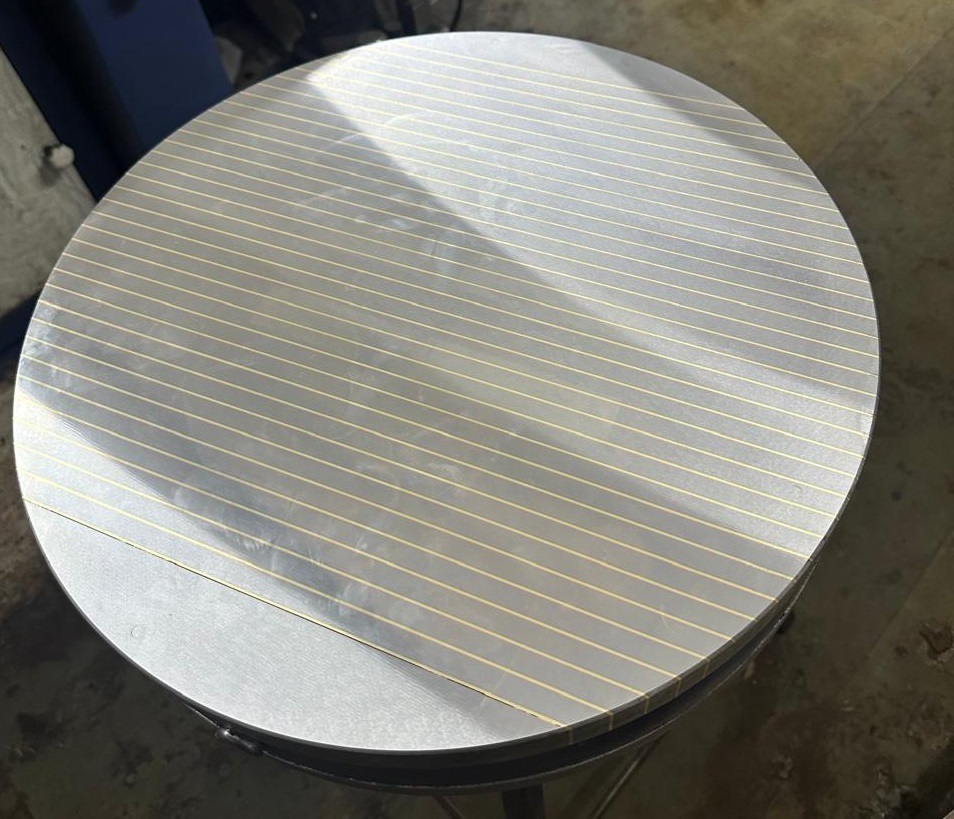

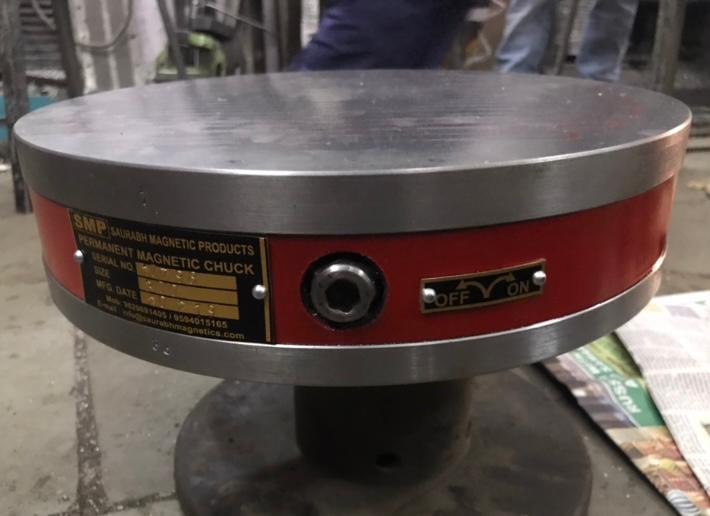

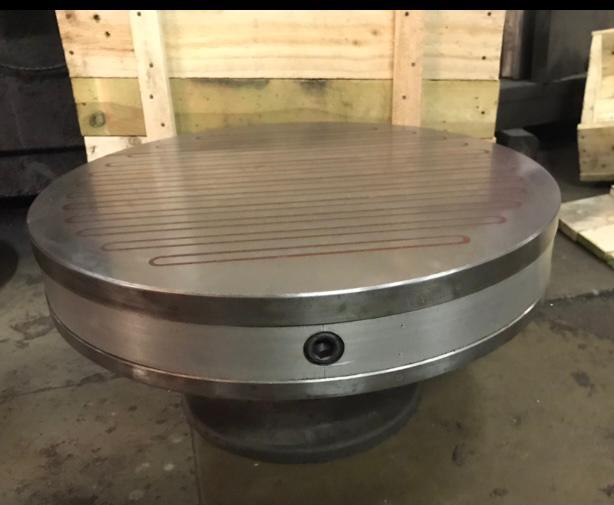

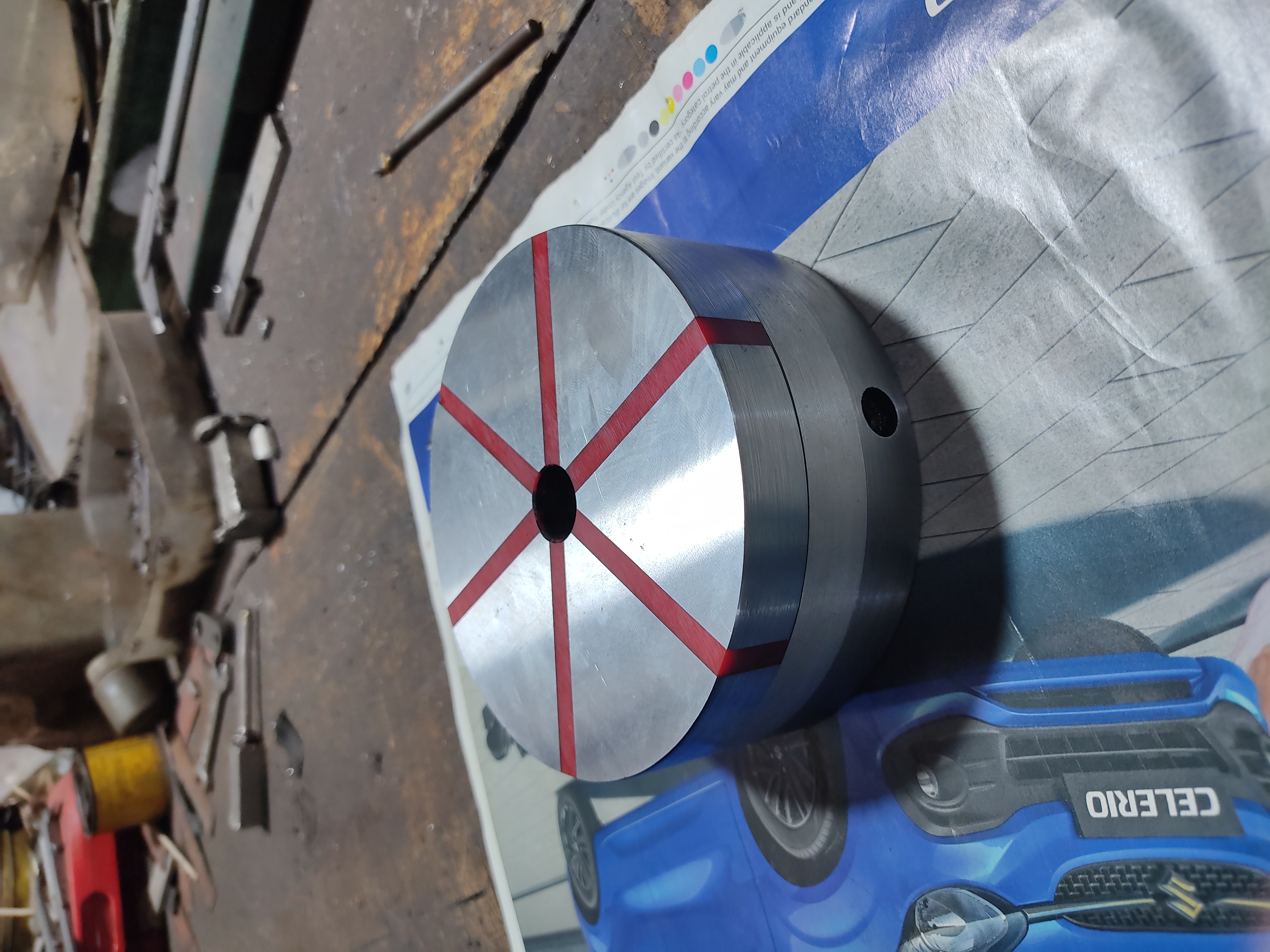

Round Permanent Magnetic Chuck
Clients can take advantage from us a wide range of Round Magnetic Chucks. Offered range of these products is designed using quality-approve raw material that is acquired from the dependable vendors of the market. In various industrial processes, it is widely used for holding ferro-magnetic work pieces owing to its magnetic properties. Offered lights are made using best quality material which we sourced from the trustworthy vendors of the market. These are well known due to their accurate dimensions.
Holding device for Rotary surface grinding and also for Lathe and Cylindrical grinding machines.
Accuracy as per IS : 4816 – 1987.
Magnetic pull is 20-40% more than IS specification.
Assembled with powerful Magnets.
ON-off by Allen key.
Sr. No. |
Cat No. |
Size (mm) |
Pole Gap (mm) |
1 |
SMP-4001 |
Ø 150 x 60 H |
12 |
2 |
SMP-4002 |
Ø 160 x 60 H |
12 |
3 |
SMP-4003 |
Ø 175 x 60 H |
12 |
4 |
SMP-4004 |
Ø 200 x 60 H |
12 |
5 |
SMP-4005 |
Ø 225 x 65 H |
12 |
6 |
SMP-4006 |
Ø 250 x 60 H |
12 |
7 |
SMP-4007 |
Ø 300 x 70 H |
12 |
8 |
SMP-4008 |
Ø 375 x 70 H |
12 |
9 |
SMP-4009 |
Ø 400 x 70 H |
12 |
10 |
SMP-4010 |
Ø 450 x 70 H |
12 |
