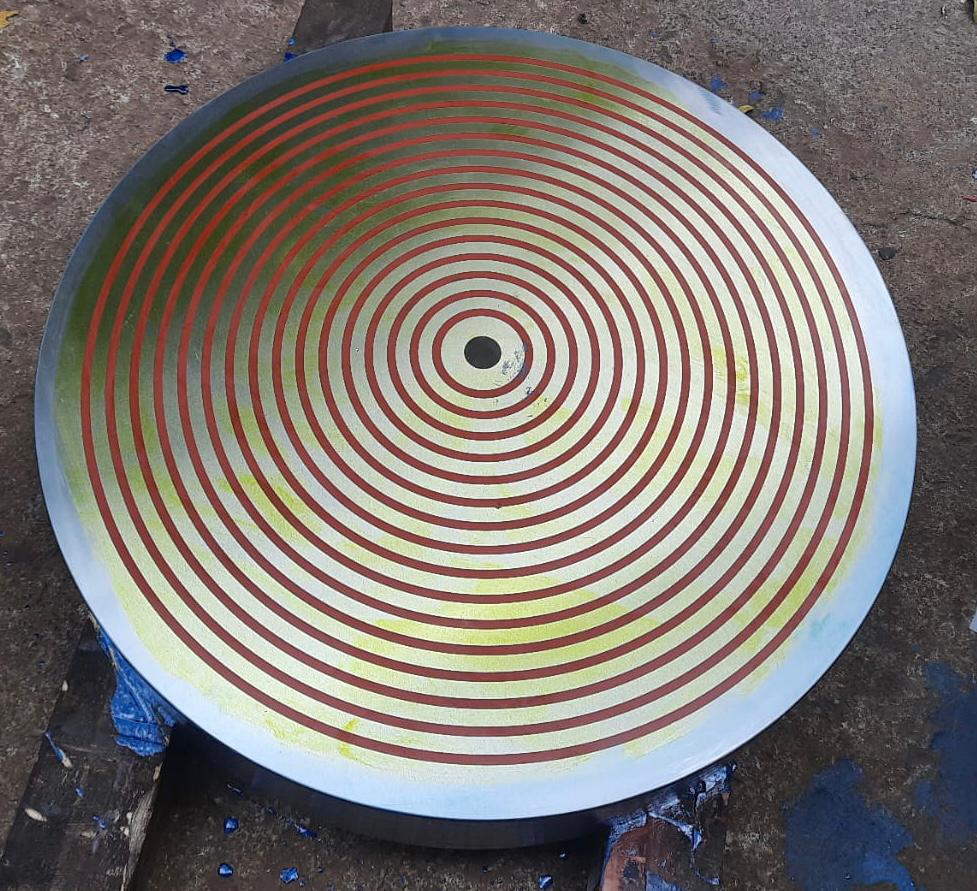

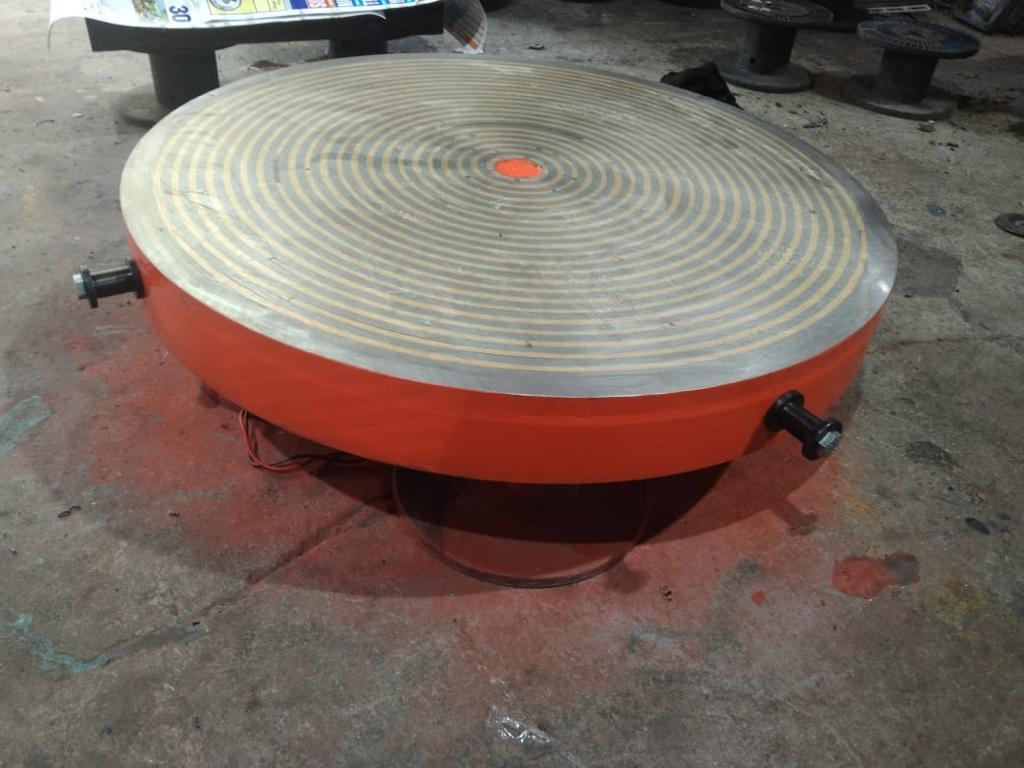

Electro Magnetic Round Chuck

Electro Magnetic Round Chuck

Work holding device for Rotary surface grinding machine & lathe machines.

Each pole is having separate coil, as such very strong & even magnetic flux is generated.

Magnetic pull is 30-50% more then IS specification.

Mag - D - Mag with variable control unit allows to neutralize the residual magnetism precisely , using a microprocessor based control circuitry.

Variable supply for varying power which helps in alignment & removing of warpages of thin jobs.

Chuck is tested for Slippering force, Waterproof test.

Temperature rise test, Electrical & Demagnetizing tests.

Sr. No.	Cat No.	Size (mm)	Circular Pole Gap (mm)
1.	SMP-17001	Ø300 X 100H	10 + 5
2.	SMP-17002	Ø450 X 100H	10 + 5
3.	SMP-17003	Ø600 X 100H	10 + 5
4.	SMP-17004	Ø750 X 100H	10 + 5
5.	SMP-17005	Ø1000 X 100H	10 + 5
5A.	"SMP" MAG D- MAG WITH VARIABLE CONTROL UNIT		2 Amp.
5B.	"SMP" MAG D- MAG WITH VARIABLE CONTROL UNIT		2 Amp. & above
